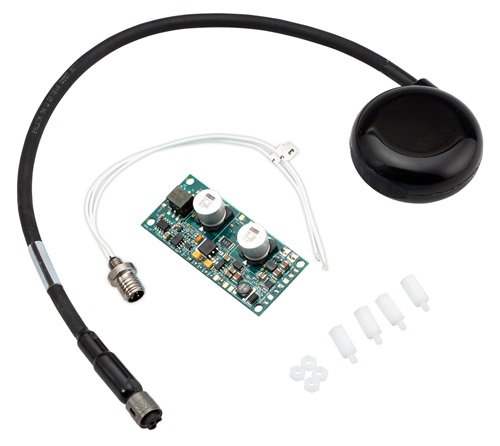

200m Mini Altimeter Kit Smart™ Sensor
Airmar's 200m Mini Altimeter Kit is an ultra-compact altimeter kit designed for measuring height off the sea floor and underwater structures.... More Info Less Info



Airmar's 200m Mini Altimeter Kit is an ultra-compact altimeter kit designed for measuring height off the sea floor and underwater structures. Pressure rated for up to 1,000 meters, the 200m Mini Altimeter delivers 99.4% accuracy at 5.8 meters from a small, lightweight configuration optimized for use on AUV’s, ROV’s and marine robotics platforms. The sensor is available in either 170 kHz or 200 kHz and has low power consumption of just 150 mA at 12 V making it ideal for power-limited vessels.

EchoRange+™ Dual-frequency Smart™ Sensor
Low-cost portable depth and temperature sensor for hydrographic survey, capable of operation at 30 kHz or 200 kHz.... More Info Less Info



Airmar's EchoRange+™ Dual-frequency Smart™ Sensor is a low-cost portable depth and temperature sensor for hydrographic survey, capable of operation at 30 kHz or 200 kHz. Embedded microelectronics process depth and temperature for instant display on devices accepting NMEA data. Real-time NMEA 0183 data is transferred to a computer via RS-422 standard. An OEM-exclusive Echo Envelope Developer Option provides a secondary transmit-only interface with a proprietary protocol using RS485. Analysis of the data may reveal information about the seafloor type.

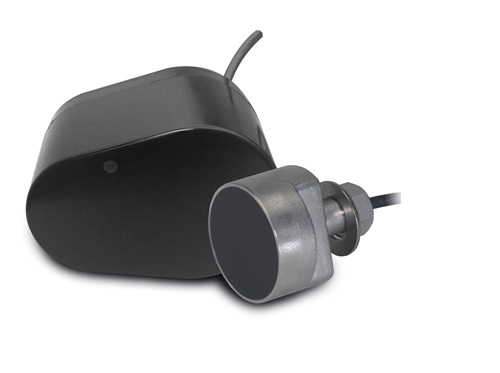

EchoRange™ 200 kHz Smart™ Sensor

Low-cost portable depth and temperature sensor for hydrographic survey.... More Info Less Info







Airmar's EchoRange™ 200 kHz Smart™ Sensor is a low-cost portable depth and temperature sensor for hydrographic survey, featuring embedded microelectronics that process depth and temperature for instant display on any device accepting NMEA data. Real-time NMEA 0183 data is transferred to a computer via RS-422 standard. An OEM-exclusive Echo Envelope Developer Option provides a secondary transmit-only interface with a proprietary protocol using RS485. Analysis of the Echo Envelope data may reveal information about the seafloor type.

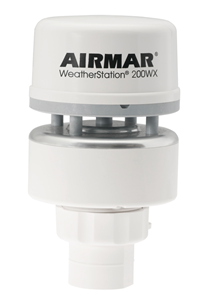

200WX WeatherStation® Instrument

Delivers accurate, reliable weather data from within a compact, maintenance-free housing with no moving parts.... More Info Less Info





The rugged, feature-rich 200WX WeatherStation multisensor delivers accurate, reliable weather data from within a compact, maintenance-free housing with no moving parts. 200WX also delivers Dynamic True wind speed and direction on moving vessels and other mobile platforms, making these durable all-in-one sensors ideal for hyper-local weather on-the-go...and for more informed on-site decisions.

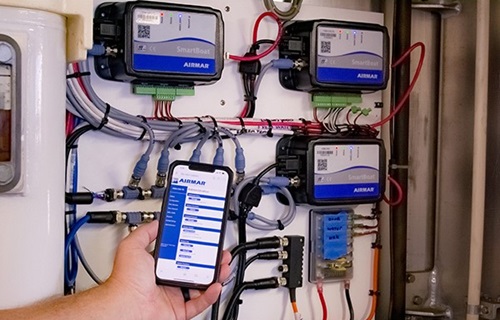

SmartBoat® Solution

Connect to and control onboard sensors & devices... More Info Less Info







Certified for both NMEA 2000® and OneNet, Airmar’s SmartBoat Solution is the easiest, most cost-effective method of integrating new or existing sensor data with upgraded electronics. SmartBoat modules connect analog marine sensors, regardless of output protocol, to an NMEA 2000 network for visibility at the helm. Each sensor can be controlled for customized alerting, automation, and PGN filtering via SmartBoat’s intuitive, menu-driven interface.

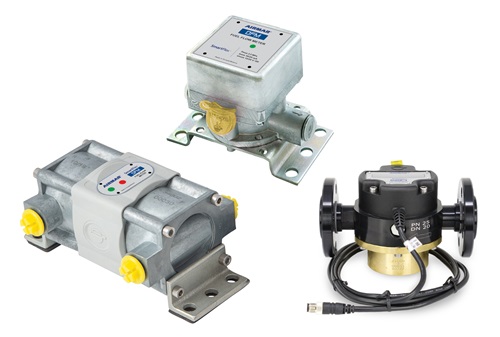

SmartFlex™ Diesel Flow Meters

Delivers data including instant and total fuel consumption, total fuel consumption in overload, and negative mode of flow meter operation (return exceeds supply).... More Info Less Info







Airmar's SmartFlex single-and dual-chamber diesel flow meters are ideal for engine systems with flow rate requirements from .2 to 1100 gallons per hour. These new DFMs are for use with SmartBoat® modules, where data is converted to NMEA 2000® and displayed on any NMEA 2000 multifunction display. DFMs provide data including instant and total fuel consumption, total fuel consumption in overload, and negative mode of flow meter operation (return exceeds supply).
